LADY
It is well known that the feminine hygiene world is always evolving, being traditionally the most progressive and innovative in following the newest market trends. For these purposes, when Delta manufacturing its lady lines, is very careful at meeting Customers’ requirements when observing at the market demand.
Sanitary Napkins

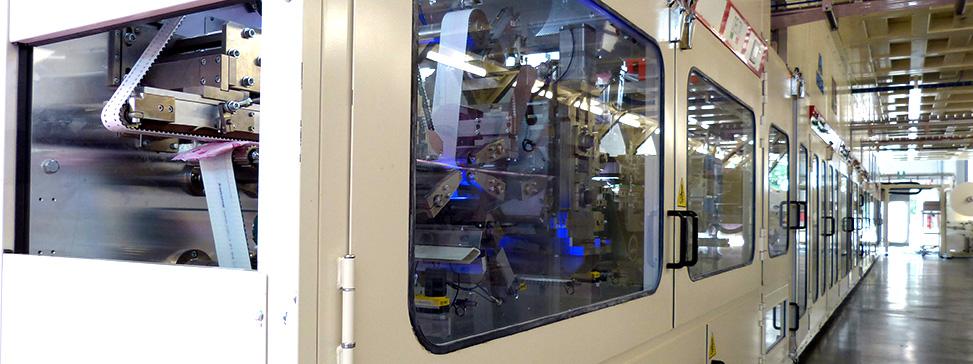

Delta Sanitary Napkins Machine for the production of thin sanitary napkins in fluff and/or ultrathin airlaid products. With or without wings, straight and trifolded in pocket bag or packaged in carton box.
General machine description
- Electronic transmission completely full servo
- High quality defibrating hammer mill with automatic pulp splice
- Rotary filter and final filter
- Fluff core or fluff+airlaid
- Thin airlaid core
- S.A.P. system
- Web guiding system
- Unwinder with automatic splicers (0 speed)
- Format change max 5 min
- Additional tension control
- Touch screen user friendly with possibility of remote control system
- Designed in compliance to local safety regulations
General technical data
| Working speed (production speed) | 700 – 1000 Pieces per min |
| Working speed (linear web speed) | 250 Meters per min |
| Product width | from 80 to 100 mm |
| Product length | from 200 to 320 mm |
| Power supply installed(*) | 250 ÷ 400 KW |
| Product type | Flat or threefolded in pocket bag. Fluff or Airlaid |
(*) this data may change depending on the machine configuration
Delta remains available for any groups or special options on request.
