BABY
Baby

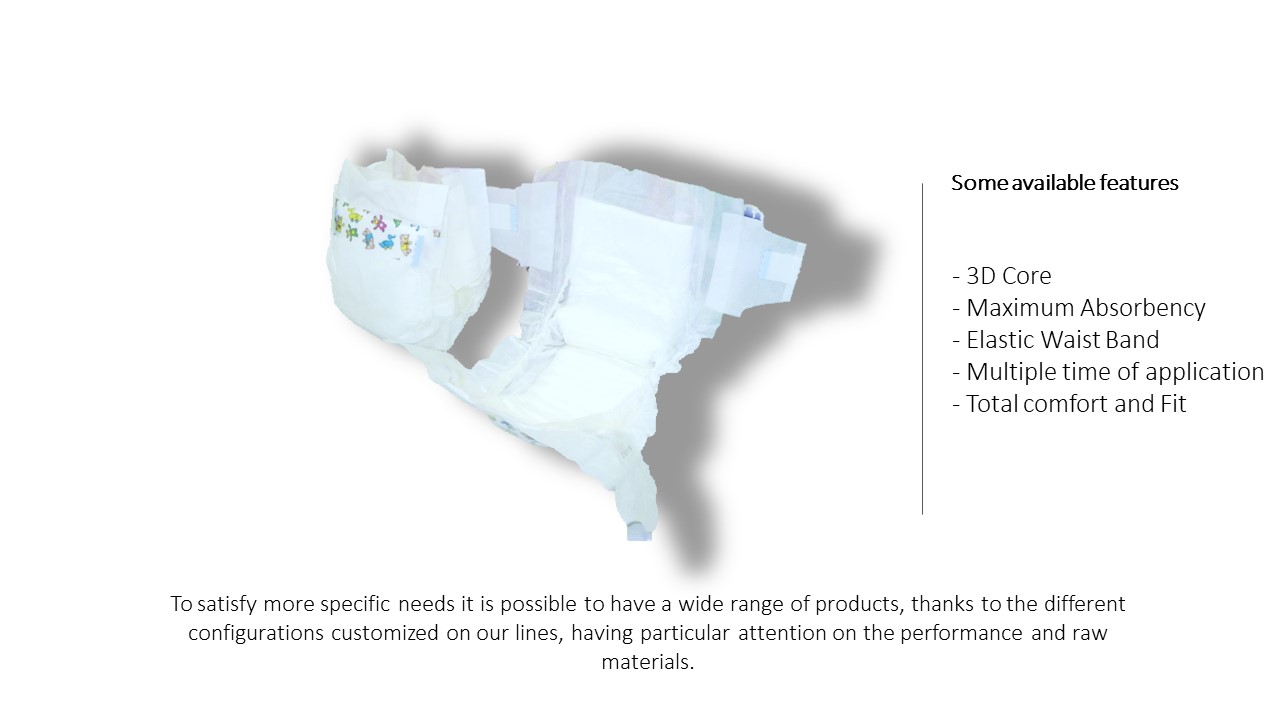

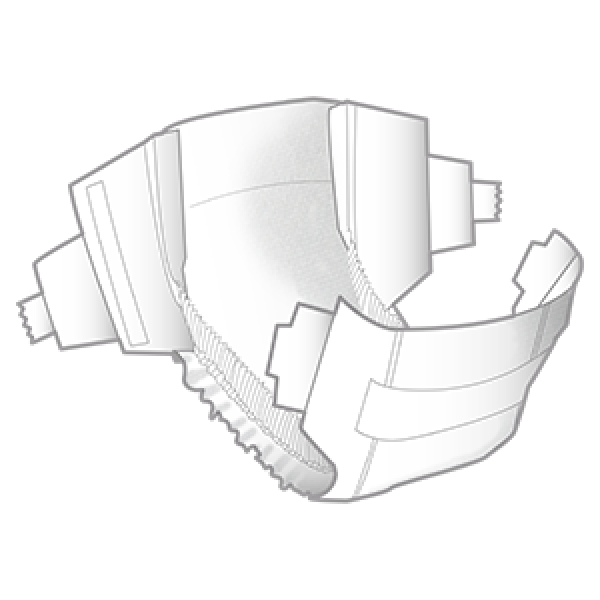

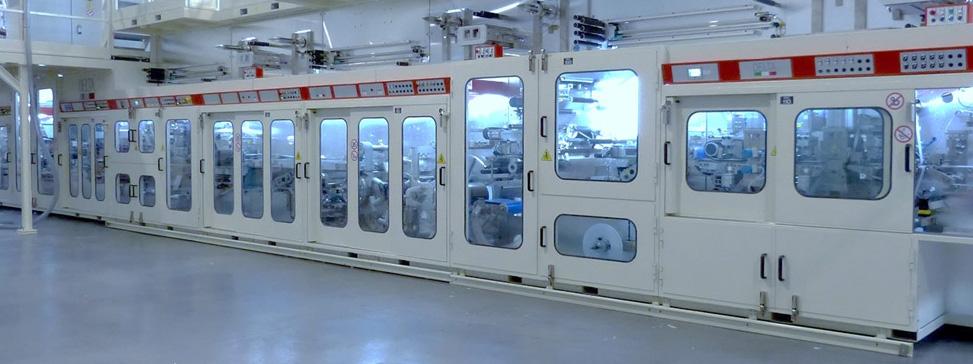

Delta Shaped Machine for the production of shaped diaper between light incontinence diapers and adult. This diaper of various sizes is worn with a special panty support.
General machine description
- Electronic transmission completely full servo
- High quality defibrating hammer mill with automatic pulp splice
- Rotary filter and final filter
- Upper and lower tissue or nonwoven
- S.A.P. system uniformly distributed
- Web guiding system
- Unwinder with automatic splicers (0 speed)
- Format change max 5 min
- Additional tension control
- Touch screen user friendly with possibility of remote control system
- Front and back shaped wings
- Designed in compliance to local safety regulations
General technical data
| Working speed (production speed) | 500 - 700 Pieces per min |
| Working speed (linear web speed) | 200 – 250 Meters per min |
| Product width | from 200 to 220 mm |
| Product length | from 320 to 530 mm |
| Power supply installed(*) | 300 ÷ 400 KW |
| Product type | Traditional baby diaper/Thin Product with t-shape |
(*) this data may change depending on the machine configuration
Delta remains available for any groups or special options on request.
